Manthorpe GW295 Horizontal Cavity Tray 900 x 155mm

Code:
GW295

Designed straight Horizontal abutments in new build projects, this GW295 Cavity Tray by Manthorpe features an integral stop end. Its hook feature removes the need for overlapping traps, giving a total tray effective length of 900mm. A unique part of the tray is its front mortar... Read More

£7.19 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 8th - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Very efficient and easy ordering…"

BodgerJohn

Description

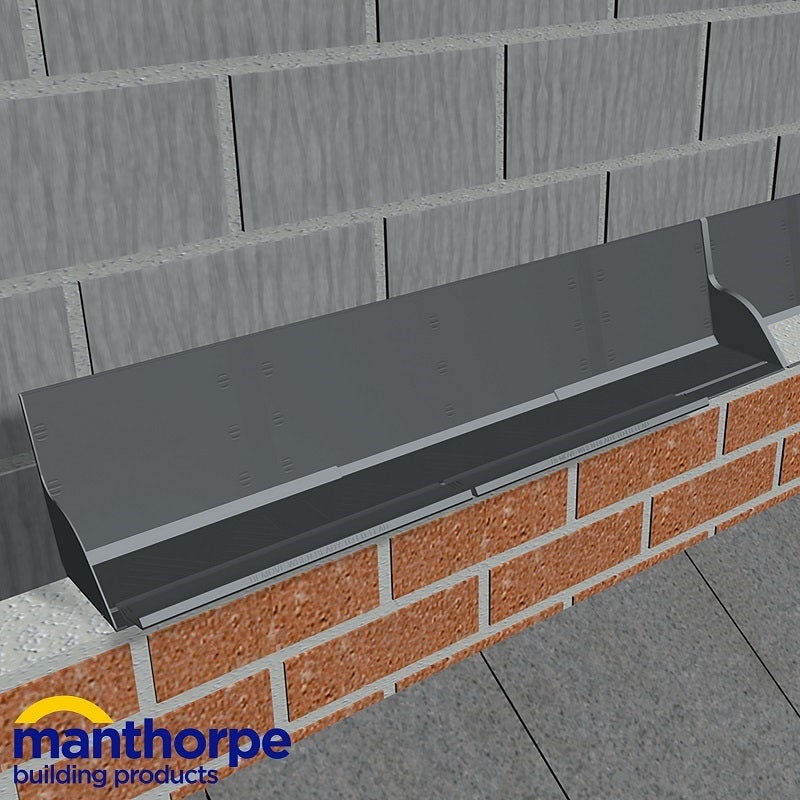

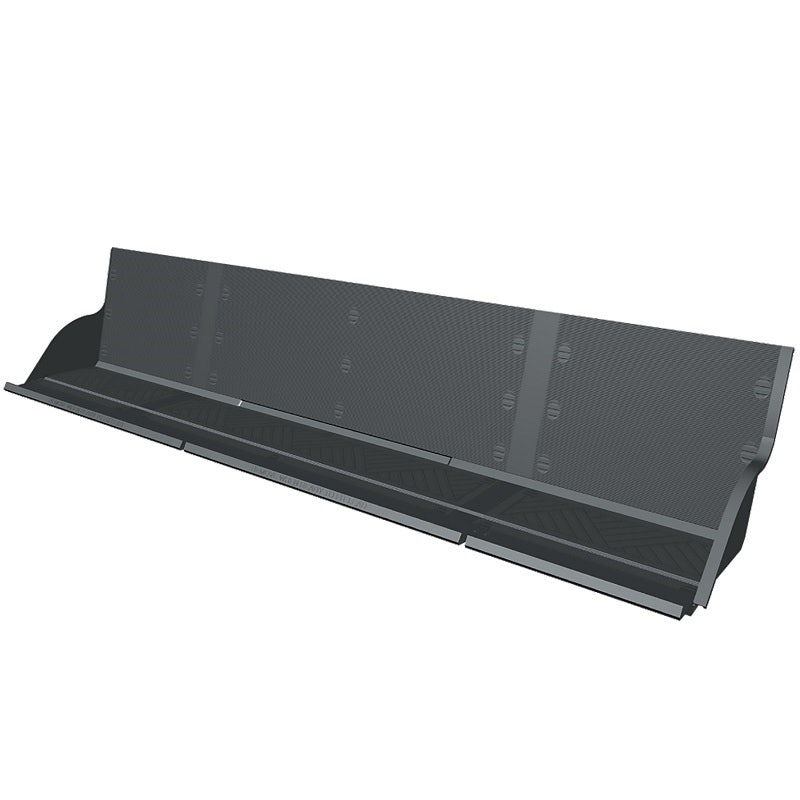

Designed straight Horizontal abutments in new build projects, this GW295 Cavity Tray by Manthorpe features an integral stop end. Its hook feature removes the need for overlapping traps, giving a total tray effective length of 900mm.

A unique part of the tray is its front mortar clips. These can be easily removed once the mortar has set, leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.

Features & Benefits: Manthorpe GW295 Horizontal Cavity Tray 900 x 155mm

  • Pre-shaped tray maintains a rigid form in the wall cavity
  • Interlocking cover permits linking of multiple trays
  • Built-in stop ends ensure water collection in the tray
  • Compatible with Manthorpe's peep weep for roof moisture drainage
  • Mortar clip is removable for swift and easy lead installation

Please note:

  • Two G950 Weep Vents or G951 Peep Weeps must be used in conjunction with this tray spaced at 450mm centres to meet current NHBC standards to drain away the collected water.
  • This tray can also be supplied with short, standard or long lead stapled and sealed to the tray in either code 4 or code 5 (special order).

Dimensions

Length
900mm

Details

Material
Plastic
Height
155mm
